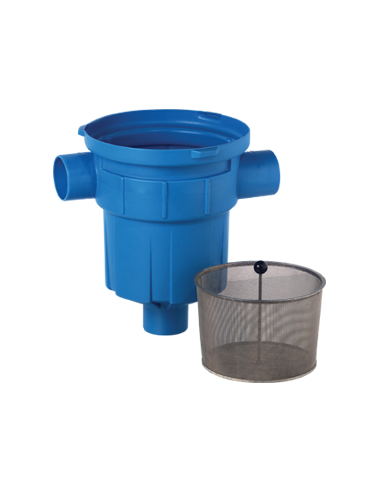

3P Infiltration and Retention Filter
3P-1000640
4018712001679
S teleskopskim podaljškom
Filter for installation in the ground before the rainwater tank.
S teleskopskim podaljškom
Filter for installation in the ground before the rainwater tank.;
This specialised filter retains all debris in a stainless steel basket (mesh size 0,55 mm) such that no dirt is washed away into the soakaway or infiltration structure.
This filter is very suitable for equipments where the water is used in washing machines, toilet flushing and garden watering, and for sites in which the rainwater has to be drained off. That means where no connection with a sewer is possible.
All inlets and outlets at DN 100, one inlet can also be used as an emergency overflow. The cleaned rainwater is led through the lower connection into the rainwater tank. Also a calmed inlet can be installed there.
Connection capacity for roof areas up to 200 m2.
The cleaned water can be used in washing machines, toilet flushing and garden watering, in homes, in commerce, in public buildings and in industry.
The filter has to be cleaned depending on the contamination several times during the year
